Tellmedical Technology Limited

Products >> CPAP >>

  • BC18
  • BC18
  • BC18
  • BC18
BC18 BC18 BC18 BC18
 BIPAP machine can be set IPAP (inspiratory positive airway pressure) and EPAP (Expiratory positive airway pressure). In use, for the user apnea varying degrees, airway pressure set by corresponding professionals for treatment.

It is suitable for clinical and home treatment of sleep apnea-hypopnea syndrome (OSAHS) and respiratory failure diseases.

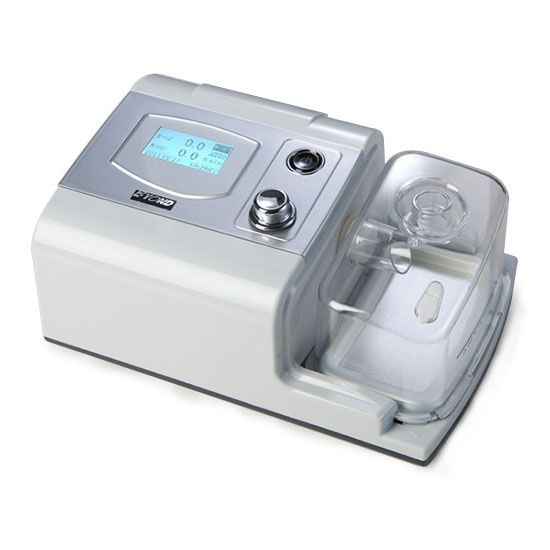

BC18



Features of BIPAP Machine
1. 128×64 LCD display with easy operation.
2. Interactive operation interface is available. Back-lighting function allow night operation.
3. Fashionable design with fine piano lacquer, convenient for wipe.
4. Respiratory waveform & quality waveform display can achieve real time monitoring of CPAP
5. Ultra silent design & Delay time step up design.
6. The portable machine adopts imported movement technology, capable of constant heating.
7. BIPAP machinery is working to achieve human-computer synchronization.

Notes of BIPAP Machine

1. Not available in bullous lung disease, pneumothorax, severe lack of effective circulating blood volume with shock, coma or with disturbance of consciousness, or don’t cooperate or accept the mask treatment.
2. Not apply to children, or physical, sensory, intellectual can not be used safely and without the aid or user under guardianship.

Parameters of BIPAP Machine

Model

BC18

Display

128×64 LCD

Mode

CPAP, S/T

Functions and features



Pressure

4-20CMH2O

Belex (1-3level)

2-4cmH2O

Ramp Duration

0-60min

IPAP

4-20cmH2O

EPAP

4-20cmH2O

Respiration Rate

4~40BPM

Inspiration Time

0.5~3.0s

Inspiration Sensitivity

1~6 level

Expiration Sensitivity 1~6 level

1~6 level

Automatic Leakage Compensation

Yes

Automatic Altitude Adjustable

Yes

Automatic ON/OFF

Yes

Adjustable Constant Temperature Humidification System

Yes

Replaceable Water Chamber

Yes

USB Download to PC

Yes

Sound Pressure Level(10cmH2O)

<30dBA

Input Volt.&Freq.

110-240Vac,50/60Hz

Net Weight & Size

1.8kg, 255×170×112mm(Host+Humidifier)



BIPAPA
Apply Crowd:
1. Moderate OSAHS patients
2. Chronic obstructive pneumonia
3. Respiratory failure

Taboo:
1. Repeated epistaxis
2. Coma
3. Hemodynamic instability
4. Pneumothorax
5. Pulmonary bulla
6. Cerebrospinal rhinorrhea

Product Accessories

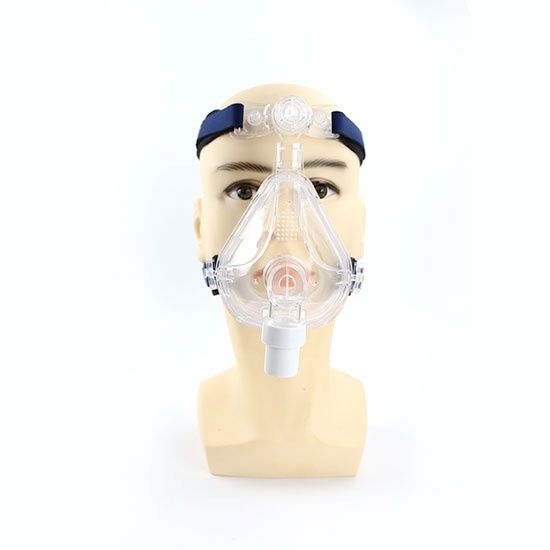

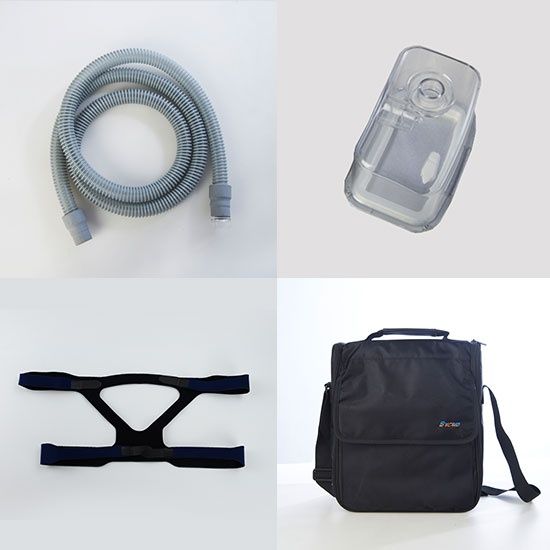

Full Face Mask, Headgear, Tube, Filter, Power Adapter, User Manual & Traveling Bag
